Camera

Home » Product »Camera
  • Visual System Solutions

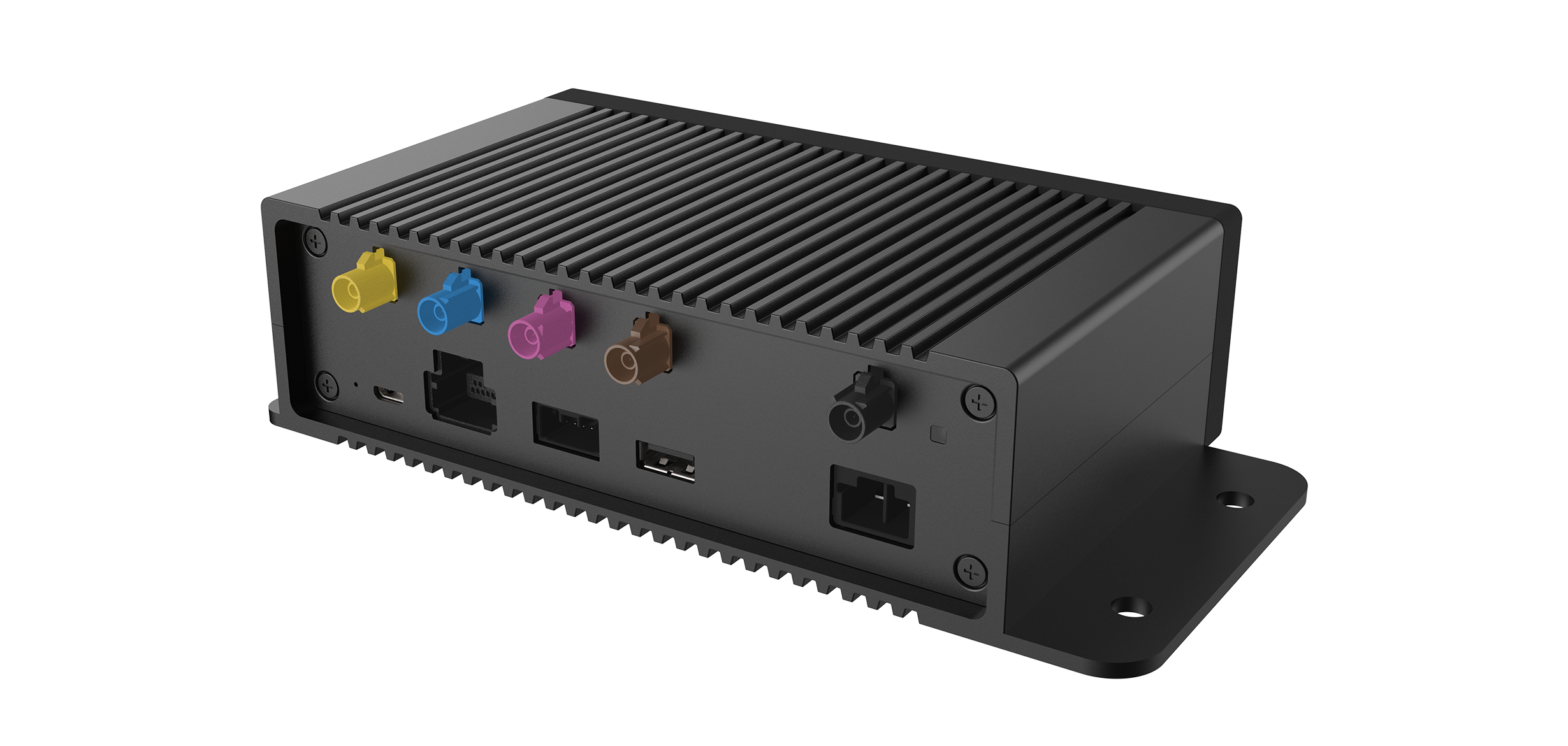

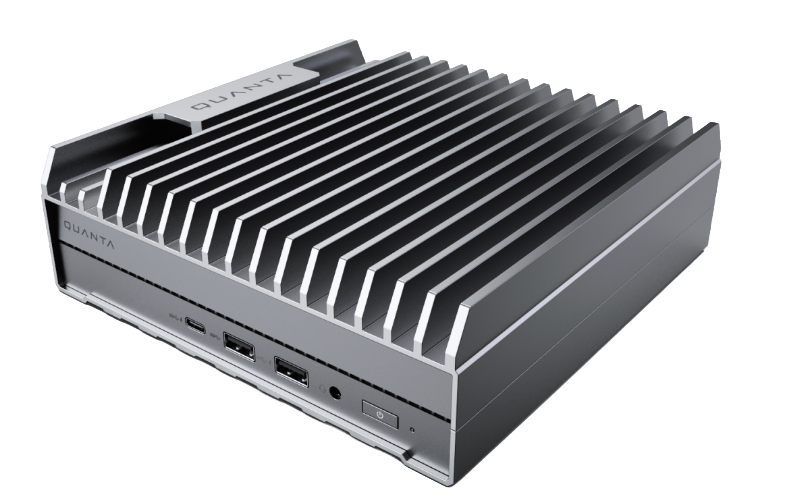

Advanced AI Box

• Multi-channel camera input (up to 12ch, 1GPixel/s) with various industrial camera designs
• In-device Transformer and Multiple AI model acceleration
• Gigabit Ethernet connectivity
• SoM and WWAN connectivity options
Powered by Ambarella’s CVflow® AI SoCs (N1-655)

Industrial AI Box

• Multi-channel camera input (up to 5ch) with various industrial camera designs
• Multiple AI model acceleration
• Gigabit Ethernet connectivity
• Cloud data management system
Powered by Ambarella’s CVflow® AI SoCs (CV2)

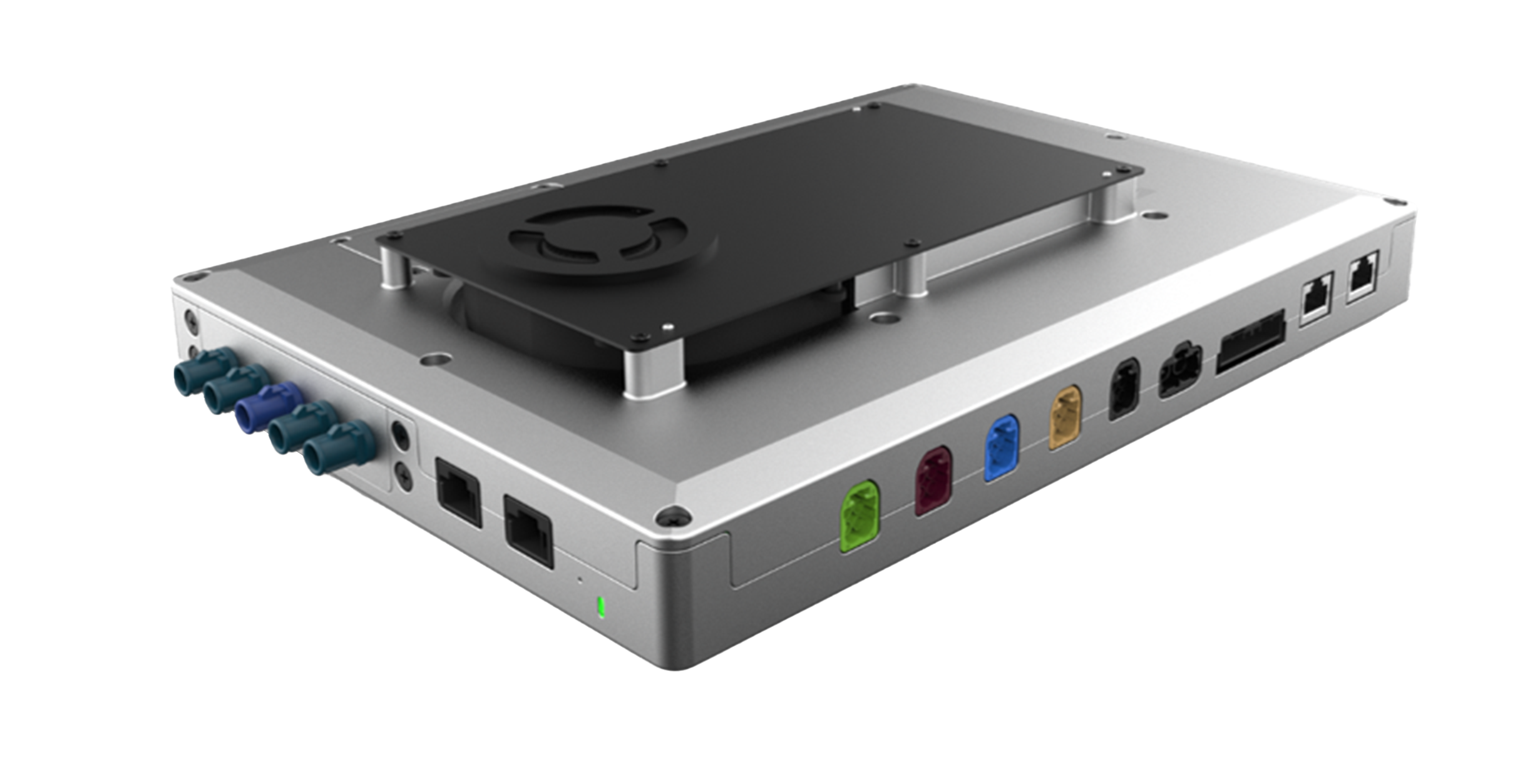

Automotive-grade AI Box

• Multi-channel input (up to 16ch) for automotive grade cameras
• Multiple AI model acceleration
• CAN and 4G/5G connectivity support
• Cloud data management system
Powered by Ambarella’s CVflow® AI SoCs (CV3-AD685)

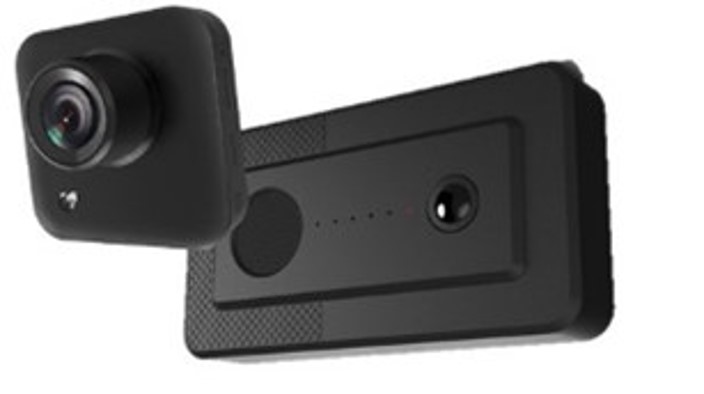

AI Dash Camera

• Dual-facing Dash Camera
• RGB / RGB-IR camera sensors
• In-device AI acceleration
• USB or connectivity options
Powered by Ambarella’s CVflow® AI SoCs (CV22, CV75)

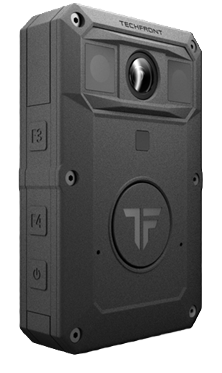

AI Body-worn Camera

• Full-functioning and low-power operating modes
• RGB-IR camera with IR illumination designs
• Connectivity options
Powered by Ambarella’s CVflow® AI SoCs (CV75)



  • Camera Modules

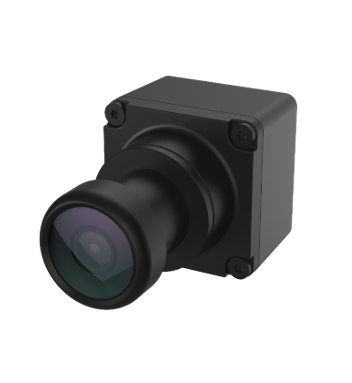

Automotive-grade Serdes Camera (Nvidia Orin/Thor Hyperion reference design)

• Level 2+ configuration for external long/short range and in-cabin sensing.
• GMSL2 and FPD-link serdes options
• IP69K option for external camera
Camera Model Sensor Pixel
Count
(MP)		 CFA HFOV

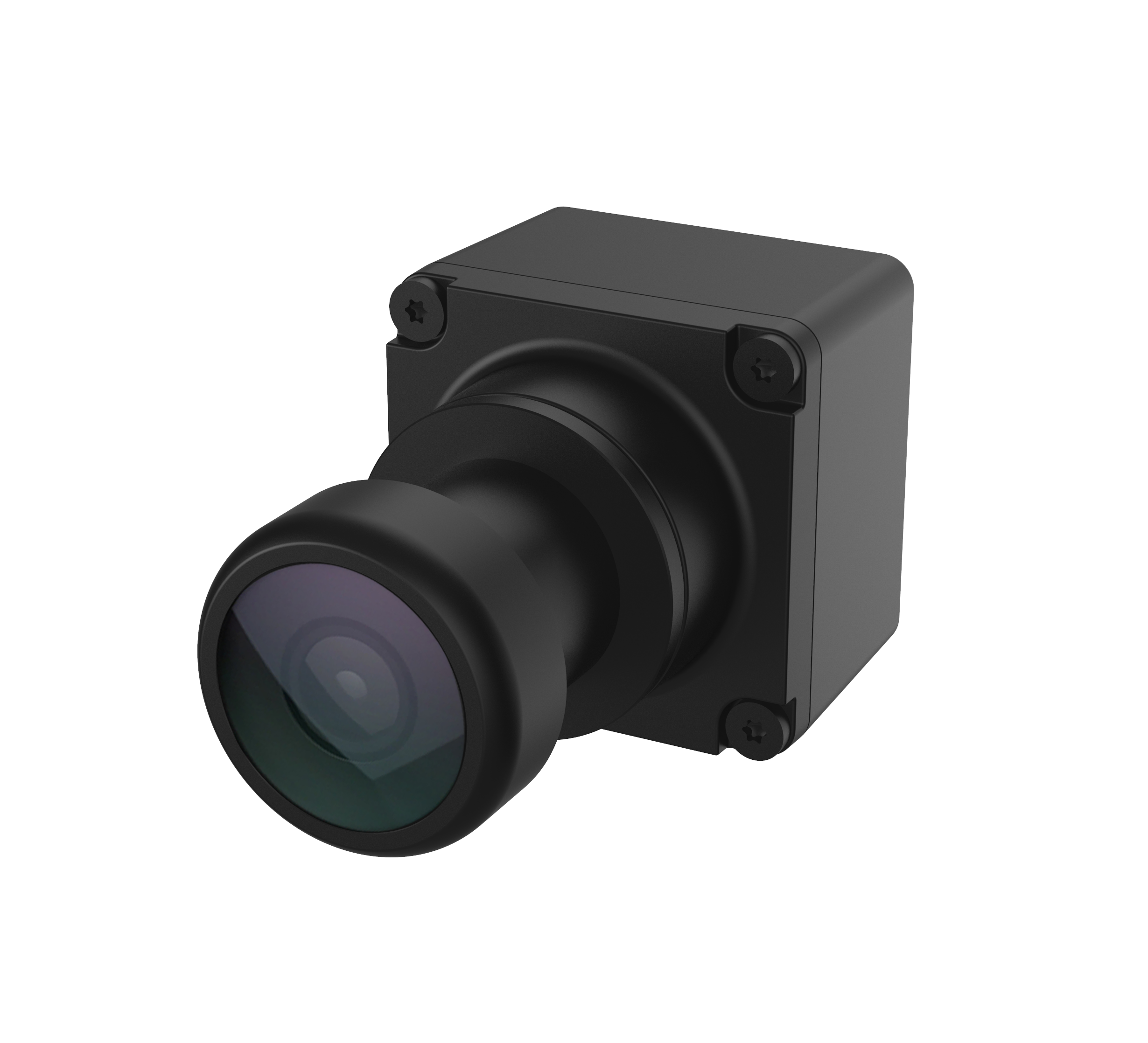

Quanta HZKJ-1 IMX728 8.3 RGGB 120 Degree
Quanta HZKJ-2 IMX728 8.3 RGGB 30 Degree
Quanta HZKJ-3 IMX728 8.3 RGGB 70 Degree
Quanta HZKK-1 IMX623 3 RGGB 197 Degree
Quanta HZKN OV2311 2 Mono 50 Degree
Quanta HZKM-2 OX05B1S 5 RGB-IR 170 Degree
Quanta HZKM-3 VB1940 5 RGB-IR 140 Degree
Quanta HZKM-10 IMX775 5 RGB-IR 120 Degree

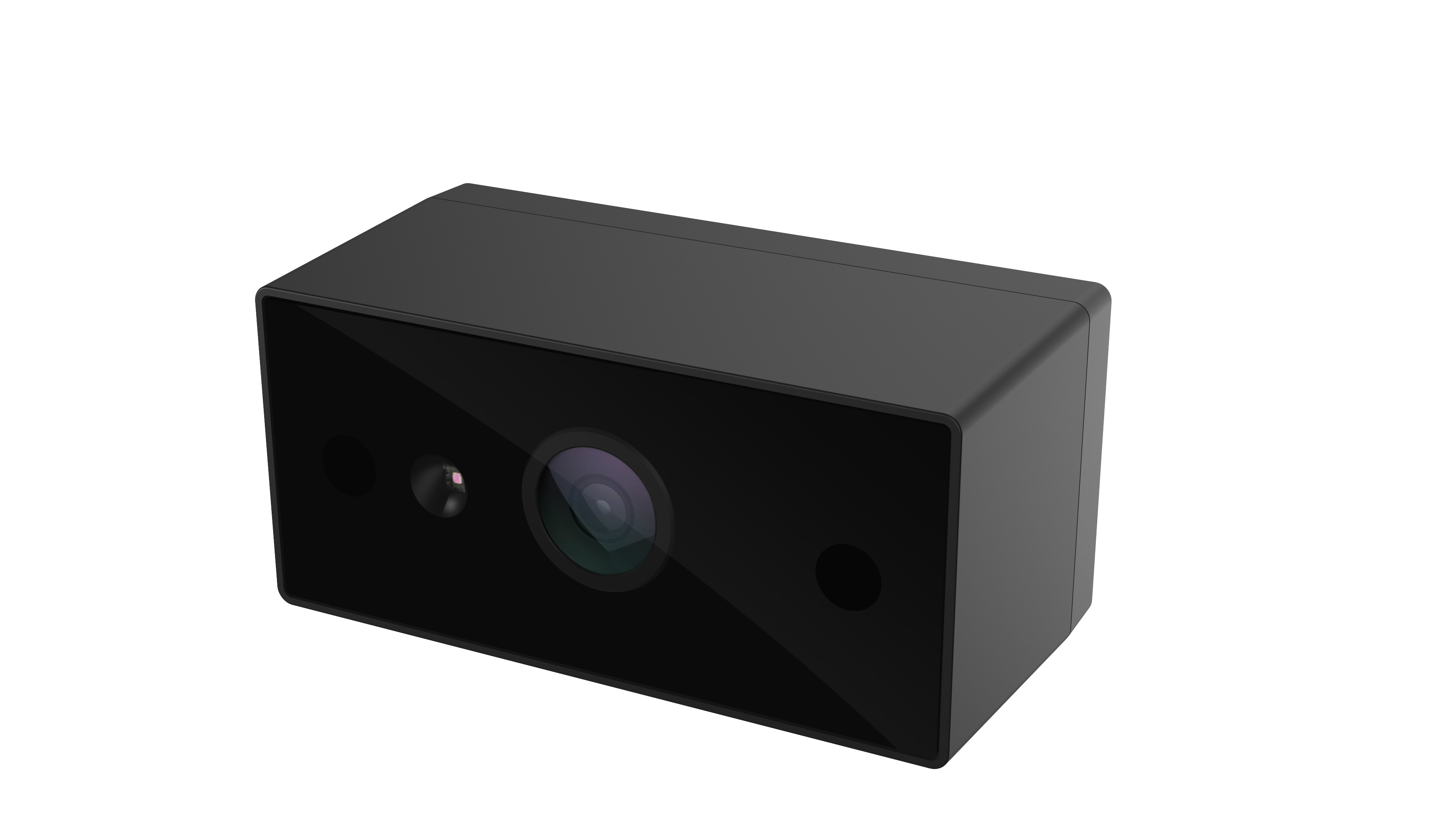

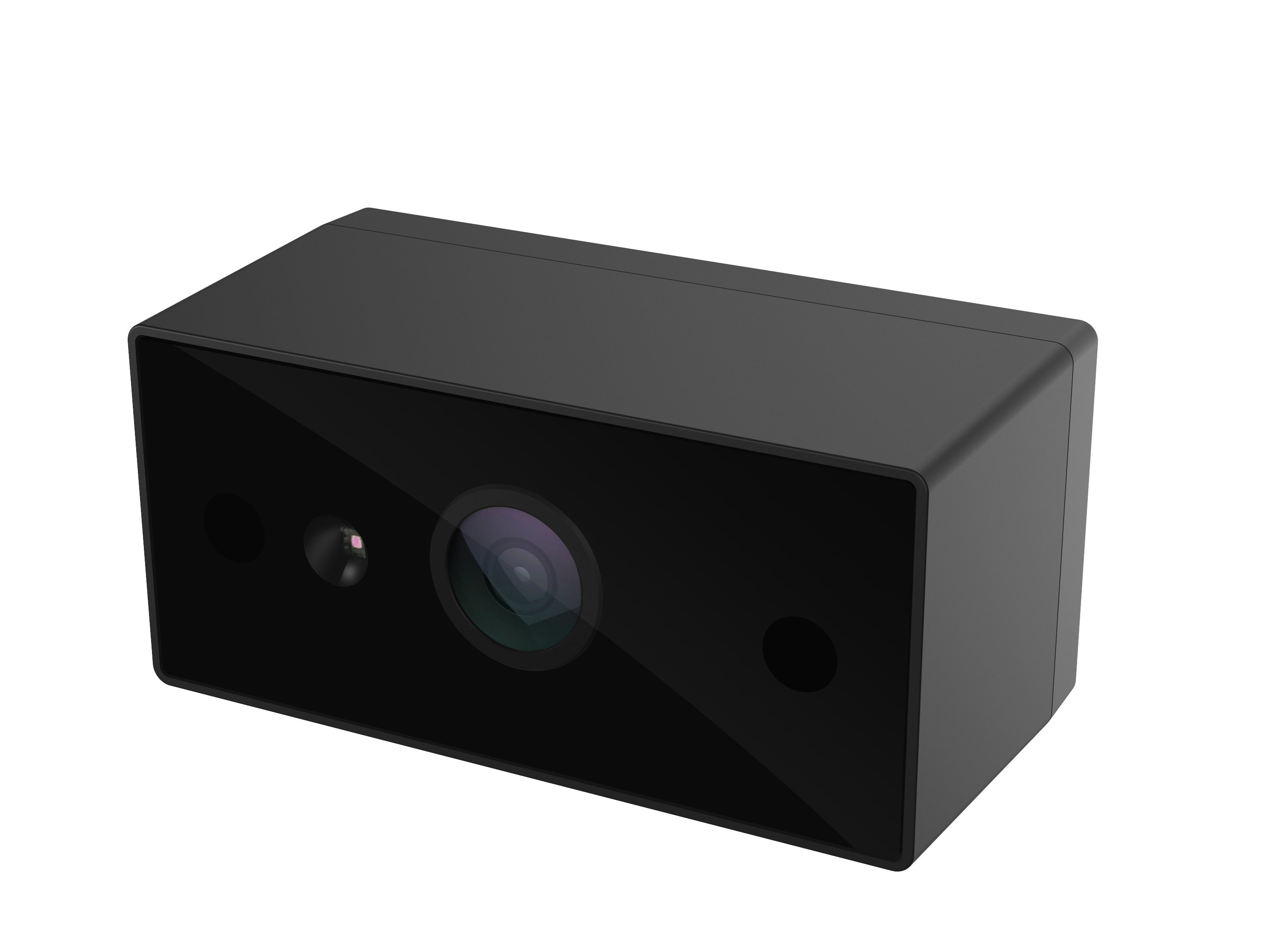

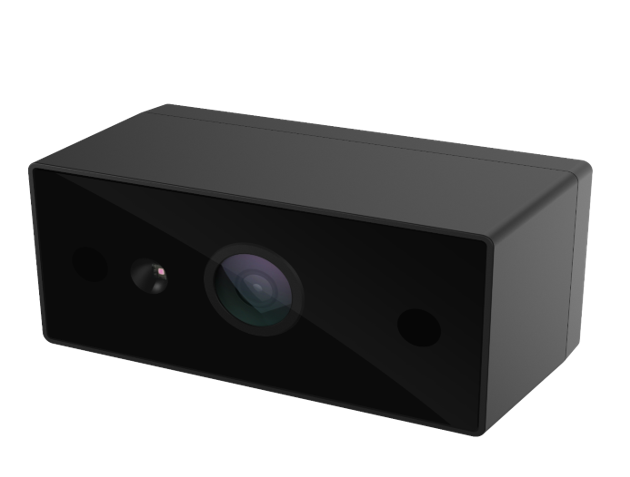

DMS/OMS Camera

• Driver and Occupancy Monitoring Camera
• 1MP / 2MP Mono and 2MP / 5MP RGB-IR options
• Narrow / Wide / Ultra-wide optical options
• GMSL2 or FPD-link options

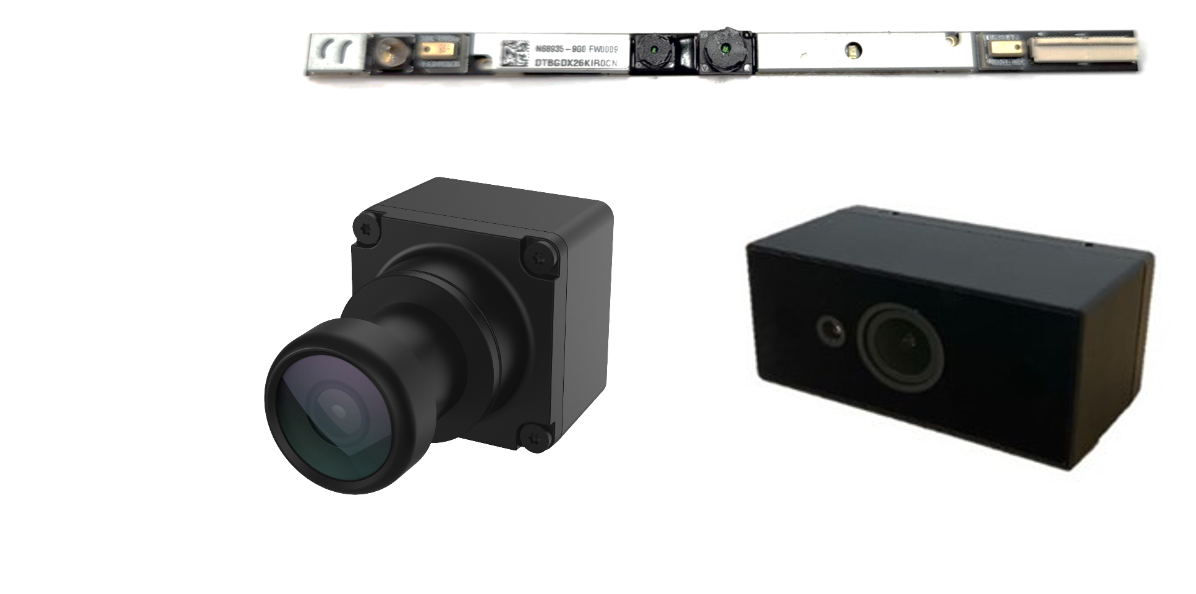

Always-on / HPD Camera

• Always-on camera sensor and image processor integrated
• In-device Motion Detection or Human Presence Detection running at low-power mode
• USB or serdes options

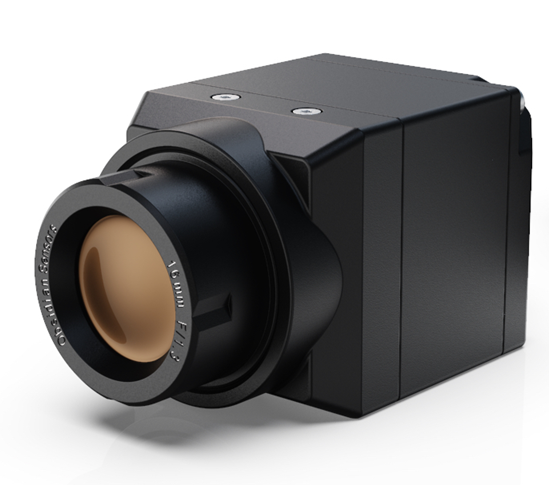

Thermal Camera

• Thermal sensor options for industrial and automotive applications
• Thermal ISP integrated
• USB or GMSL2 compatible

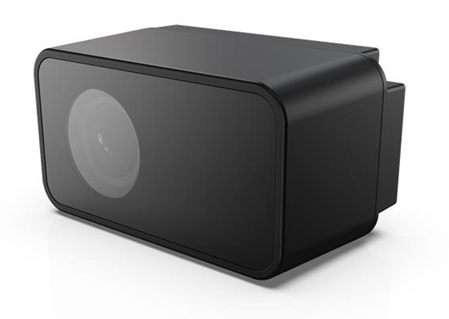

3D Camera

• 1MP iToF for industrial and robotic applications
• Lens and IR illuminator variants for long-range and wide-angle use cases
• Depth decoder integrated
• MIPI or GMSL2 compatible
Contact Window : CM_sales@quantatw.com
